Looking for strong, reliable structural connectors and fixings for your construction projects? Simpson Strong-Tie offers high-performance joist hangers, angle brackets, straps, anchors, and screws—all engineered for safety, durability, and ease of installation. Manufactured in the UK and rigorously tested to meet British and European standards, these products are ideal for timber framing, decking, masonry, and steel connections. With expert support, fast delivery, and innovative solutions like Quik Drive® screw systems, Simpson Strong-Tie provides trusted, code-compliant products for builders, contractors, and engineers across residential and commercial projects.
The Simpson Strong-Tie ABW Adjustable Post Base with Stand Off is a versatile and cost-effective solution for anchoring timber posts to concrete surfaces. Designed to elevate the post 25mm above the concrete, it helps prevent moisture-induced decay, extending the lifespan of the timber.
Key Features:
Adjustable Installation: The slotted base allows for flexible positioning around the anchor bolt, accommodating various post placements.
Retrofit Capability: Suitable for both new constructions and retrofitting existing structures, it can be installed onto a threaded bar in poured concrete or with a resin or mechanical anchor into solid concrete (anchors sold separately).
Durable Material: Constructed from pre-galvanised mild steel, offering corrosion resistance for outdoor applications.
Enhanced Post Protection: The 25mm stand-off design reduces the risk of moisture-related decay at the base of the timber post.
Ideal for applications such as pergolas, carports, and other timber structures, the ABW Adjustable Post Base provides a reliable and durable connection between timber posts and concrete foundations.
1. Trusted Structural Performance
With over 60 years of experience, Simpson Strong-Tie offers more than 1,000 rigorously tested products, including joist hangers, angle brackets, and restraint straps. Their UKAS-accredited testing facility ensures that products meet high standards for strength and reliability, providing builders with confidence in load-bearing applications.
2. British Manufacturing and Rapid Delivery
Operating from a substantial facility in Tamworth, Staffordshire, the company produces up to 60 tonnes of steel products weekly. Their membership in the 'Made in Britain' initiative underscores their commitment to local manufacturing. With three UK distribution centres, they offer swift delivery to both stores and construction sites.
3. Comprehensive Technical Support
Simpson Strong-Tie provides direct access to engineers for technical advice, ensuring expert guidance on product selection and installation. Their extensive online resources include CAD/BIM libraries, design software, and training videos, supporting professionals throughout the construction process.
4. Innovative and Ergonomic Solutions
The company offers advanced tools like the Quik Drive® collated screw system, designed for efficiency and ease of use in various applications, such as decking and drywall installations. This system minimizes physical strain and increases productivity on job sites.
5. Commitment to Quality and Sustainability
Simpson Strong-Tie adheres to international quality standards, including ISO 9001 for quality management and ISO 14001 for environmental management. Their products are CE marked, ensuring compliance with European safety and performance standards.
In summary, Simpson Strong-Tie combines decades of expertise, robust UK manufacturing, and a customer-centric approach to deliver reliable structural solutions for the construction industry.

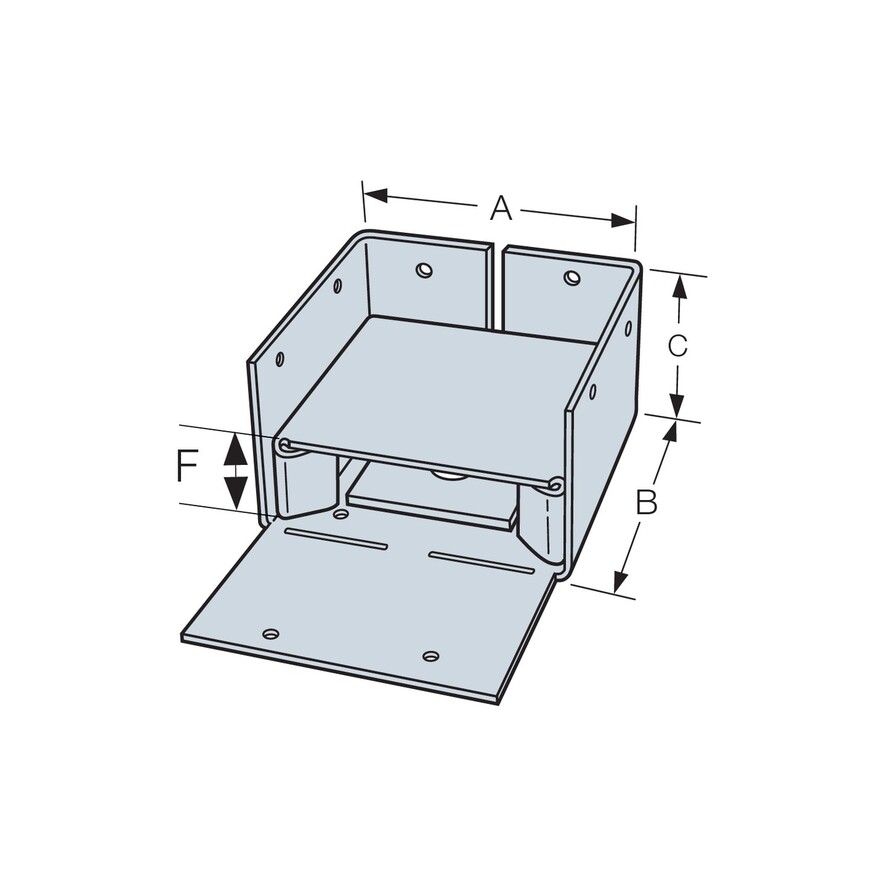

Specifics
Width (A): 101.6mm
Depth (B): 101.6mm
Height (C): 50mm
Base Height (F): 25.4mm
Post Size: 100x100mm
Washer Size: 50x50x3.5mm
Weight: 0.64kg
Top Hole diameter: 8mm
Base Hole diameter: 1mm
Material: Pre-galvanised mild steel
Simpson part number: SIMABW44RZ
