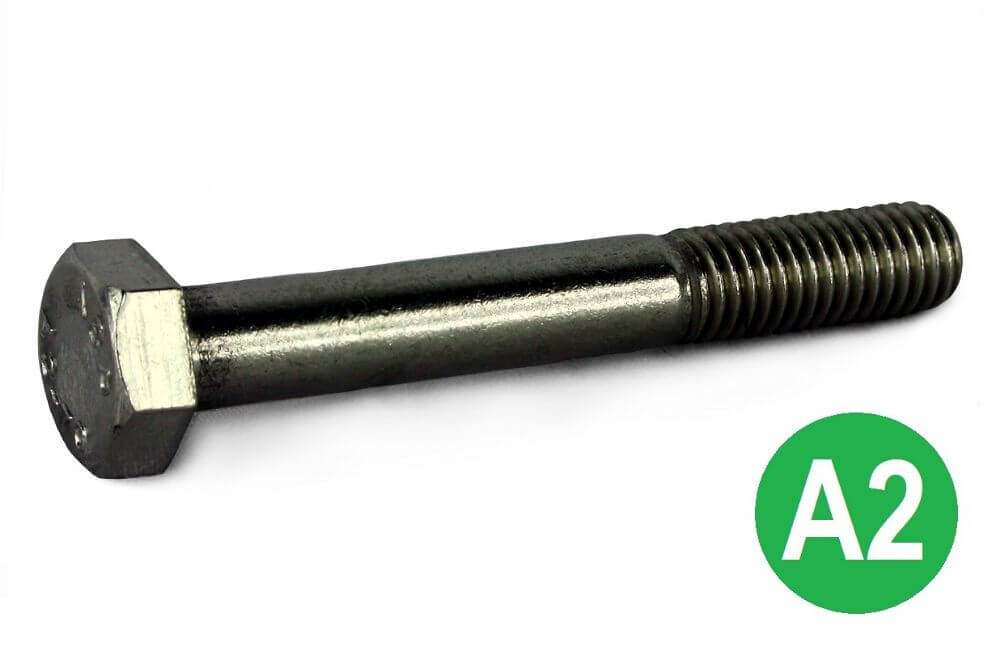

1/4 UNF x 3'' Hexagon Head Bolt A2 (304) Stainless ANSI B18.2.1

  • Rust resistant for exterior use
  • 1/4 - 28 TPI UNF thread
  • 7/16 inch hex head (A/F)


£ 1.29 INC VAT (PRICED EACH)

£129.38 PER 100

(Include VAT?)

BULK QUANTITY DISCOUNTS:

10+

£77.63

50+

£51.75

400+

£36.23

QUANTITY:

20 IN STOCK


The 1/4 UNF × 3″ Hexagon Head Bolt A2 (304) Stainless Steel is designed for secure fastening in engineering, fabrication, maintenance and general assembly applications. Manufactured from A2 stainless steel, it offers good corrosion resistance for a wide range of indoor and suitable outdoor environments.

Featuring a Unified National Fine (UNF) thread and a hexagon head, this bolt is intended for use with a compatible 1/4 UNF nut or tapped hole where the application and thread engagement are appropriate. The partially threaded shank allows the unthreaded section to pass through the components being joined, while the external hexagonal head can be tightened using a suitable spanner or socket.


A 1/4 UNF A2 Stainless Steel Hexagon Head Bolt is an imperial fastener designed to secure components together using a compatible nut or threaded hole. Its six-sided head provides an external drive for tightening with a suitable spanner or socket.

The bolt is manufactured from A2 stainless steel, commonly associated with grade 304 stainless steel. This material offers corrosion resistance in many general-purpose applications, making it suitable for a range of indoor and appropriate outdoor environments.

UNF stands for Unified National Fine. Compared with the coarser UNC thread of the same nominal diameter, a UNF thread has more threads per inch. This fine thread must be matched with a compatible nut or tapped hole. The bolt's partially threaded shank provides an unthreaded section beneath the head, which can be useful when passing through the components being joined.

  • Nominal diameter: 1/4 inch (6.35mm).
  • Overall length: 3 inch (76.2mm), measured from beneath the head.
  • Head type: Hexagon head.
  • Thread: Unified National Fine (UNF), 28 threads per inch.
  • Material: A2 (304) stainless steel.

1/4 UNF A2 stainless steel hexagon head bolts are suitable for many general fastening applications where an imperial fine-thread bolt and compatible nut or tapped hole are required. Their partially threaded design can be useful where the unthreaded shank passes through the joined components.

Typical applications may include:

  • Securing brackets, plates and metal components.
  • General engineering, fabrication and maintenance work.
  • Fixing machinery components and equipment.
  • Repairs and replacements on equipment designed around imperial fasteners.
  • Applications where stainless steel corrosion resistance is beneficial.

Choose the bolt length, thread engagement and mating fastener to suit the joint. Consider the applied load, material compatibility, operating environment and any relevant engineering requirements before installation.

UNF and UNC threads of the same nominal diameter are not interchangeable. Always confirm the thread specification before selecting a replacement bolt or nut.


This is an imperial hexagon head bolt with a Unified National Fine thread. The following are standard-based nominal dimensions for the 1/4 UNF × 3″ size. Confirm the exact head and thread dimensions against the supplier's drawing before using them as controlled product specifications.

  • Thread series: UNF.
  • Nominal thread diameter: 1/4 inch (6.35mm).
  • Thread pitch: 28 threads per inch.
  • Spanner size: 7/16 inch across flats, nominal.
  • Nominal head height: 5/32 inch, nominal.
  • Overall length: 3 inch (76.2mm), measured from beneath the head.
  • Material: A2 stainless steel, commonly associated with grade 304.

A2 stainless steel provides corrosion resistance in many general-purpose environments but is not suitable for every chemical, marine or highly corrosive application. Check the manufacturer's documentation where a specific mechanical property, approval or operating condition is required.


What does 1/4 UNF mean?
1/4 identifies a nominal thread diameter of 1/4 inch. UNF stands for Unified National Fine, and the standard thread for this size has 28 threads per inch.

What is the difference between UNF and UNC?
UNF is the Unified National Fine thread series, while UNC is the Unified National Coarse series. UNF has more threads per inch at the same nominal diameter. The two thread types should not be treated as interchangeable.

What spanner size is required?
A standard 1/4 inch hexagon head bolt typically uses a 7/16 inch spanner or socket. Confirm the head dimensions against the product drawing if an exact fit is required.

What are the benefits of A2 stainless steel?
A2 stainless steel, commonly associated with grade 304, offers corrosion resistance in many general-purpose environments. It is not suitable for every highly corrosive environment.

Can this bolt be used outdoors?
It may be suitable for many outdoor applications, depending on exposure and environmental conditions. Consider the risk of corrosion and the compatibility of other materials in the assembly.

What nut should be used with this bolt?
Use a compatible 1/4 UNF nut with a matching thread and suitable material and strength properties for the application. A UNC nut or metric nut is not an equivalent replacement.

How is the bolt length measured?
For a hexagon head bolt, the nominal length is measured from the underside of the head to the end of the bolt, excluding the head height.


Specifics

Nominal diameter: 1/4 inch (6.35mm)
Overall length: 3 inch (76.2mm)
Thread length: Verify against the supplier's drawing
Thread type: Unified National Fine (UNF), 28 threads per inch
Head type: Hexagon head
Head height: Verify against the supplier's drawing
Spanner size: 7/16 inch across flats, nominal
Drive recess: External hexagon
Pack size: Confirm against product listing
Material: A2 (304) stainless steel
Surface finish: Stainless steel finish
Standard: Not confirmed in the supplied product details
SKU: A2HBUNF14X3



Installation: Use a suitable spanner or socket to tighten the bolt. Select a compatible 1/4 UNF nut or tapped hole and ensure sufficient thread engagement for the joint. Avoid overtightening, which can damage the threads or joined components. Check the suitability of the fastener, mating components and tightening method for the load and operating environment.
