Buy Fischer DuoTec 10 Toggle Fixings (Pack of 50) 537258

Alert

remove

Please enter the new quantity and click submit.





Fischer DuoTec 10 Nylon Toggle Fixings (Pack of 50) 537258

  • Accepts 4.5mm - 5mm wood and machine screws
  • Holds 20KG in single skin plasterboard
  • Requires a Ø10mm diameter drill hole
SIZE:
OPTIONS:

£ 25.49 INC VAT (PRICED EACH)

(Include VAT?)

BULK QUANTITY DISCOUNTS:

5+

£23.99

10+

£23.09

QUANTITY:

4 IN STOCK


The fischer DuoTec toggle fixing is an intelligent 2-component gravity toggle fixing that can support high loads in both cavity and solid walls. As a member of the DUO line range, the fischer DuoTec comprises two plastic components. The red and hard component of the plug sleeve facilitates the consistent distribution of the load, while the grey and soft component prevents damage to the panel's surface by the fixing, reducing the load. The fischer DuoTec works brilliantly in cavity walls, but it can also be used like a conventional expansion plug in solid walls. The clever geometry of the DuoTec fixing means that you can use both wood/chipboard screws and machine thread bolts to secure into the fixing.


Features

  • Standard drill hole diameters and short tilting element for easy installation in narrow cavities
  • Flexible screw mount allows for the use of screws with different thread shapes
  • Can be used in cavities containing insulation
  • Suitable for both cavity and solid walls

Specifics

Drill diameter: 10mm
To suit chipboard screws Ø: 4.5mm - 5.0mm
To suit metric machine screws Ø: M5
Minimum panel thickness: 9.5mm
Maximum panel thickness: 55mm
Minimum cavity depth: 40mm
Minimum screw length: tfix + 55mm
Anchor length: 50mm
Pack quantity: 50
Fischer part number: 537258

Click here to see loading and installation data

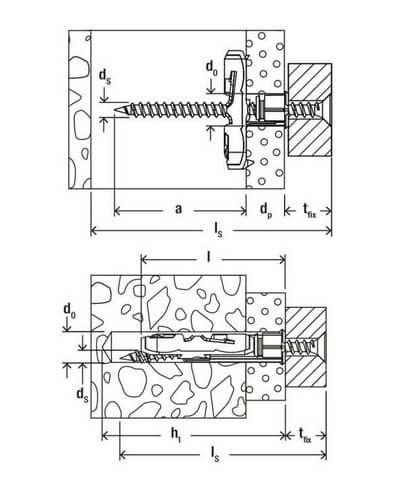

technical line drawing of Fischer DuoTec toggle fixings
