The HECO-TOPIX-plus Flange Head Screw 10 × 80mm is a structural timber screw designed for professional wood construction applications. Its enlarged flange head provides a greater clamping surface for improved load transmission, while the T40 Torx drive allows positive engagement and efficient installation.
The part-threaded design incorporates shank ribs to reduce driving torque and support a smooth, tension-free installation. The patented HECO-TOPIX tip helps reduce timber splitting and allows installation without pre-drilling in many applications. Manufactured from carbon steel with a bright zinc plated A3K finish, this screw is suitable for a wide range of structural timber applications.
HECO-TOPIX-plus Flange Head Screws are structural timber screws designed for high-performance wood construction. The enlarged flange head provides an increased clamping surface for improved load transmission, while the part-threaded design incorporates shank ribs to reduce driving torque and support a tension-free connection.
The patented HECO-TOPIX tip helps reduce the risk of timber splitting and allows narrow edge and centre distances. The optimised thread pitch supports fast installation, while the T40 drive provides positive engagement during installation.
These screws are suitable for structural timber construction and timber-to-timber connections where a large clamping surface is beneficial. Typical applications include timber framing, roof construction, structural carpentry, timber connections and general engineered wood construction.
The part-threaded version is particularly suited to applications where the components need to be pulled together during installation. Always select the screw length and fixing arrangement in accordance with the structural requirements of the application.
HECO-TOPIX-plus Flange Head Screws are covered by European technical approvals including ETA-11/0284 and ETA-19/0553.
HECO-TOPIX Declaration of Performance
HECO Declaration of Performance ETA-19/0553
HECO-TOPIX ETA
HECO-TOPIX-plus ETA-19/0553
What size driver do I need for the HECO-TOPIX-plus 10 × 80mm Flange Head Screw?
The screw uses a T40 Torx drive.
What is the thread length of the 10 × 80mm screw?
The thread length is 73mm.
What is the head diameter?
The enlarged flange head has a diameter of 22.5mm, providing a large clamping surface.
Does the screw require pre-drilling?
The HECO-TOPIX tip is designed to reduce splitting and can allow installation without pre-drilling in many suitable timber applications.
What is the screw made from?
The screw is manufactured from carbon steel with a bright zinc plated A3K finish.

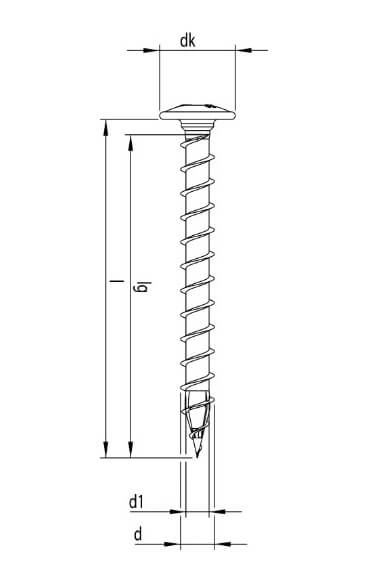

Specifics
Nominal diameter: 10mm
Overall length: 80mm
Thread length: 73mm
Thread type: Partial thread
Head type: Flange head
Head diameter: 22.5mm
Drive recess: T40 Torx
Box quantity: 50
Selling unit: Each
Material: Carbon steel
Surface finish: Bright zinc plated, A3K
Approval reference: ETA-11/0284 / ETA-19/0553
Manufacturer part number: 48240
Installation: Use a suitable T40 Torx driver bit. Drive the screw perpendicular to the timber surface until the flange head is firmly seated. The HECO-TOPIX tip is designed to reduce the need for pre-drilling in suitable timber applications. Ensure the selected screw length and installation arrangement are appropriate for the structural requirements of the connection.
