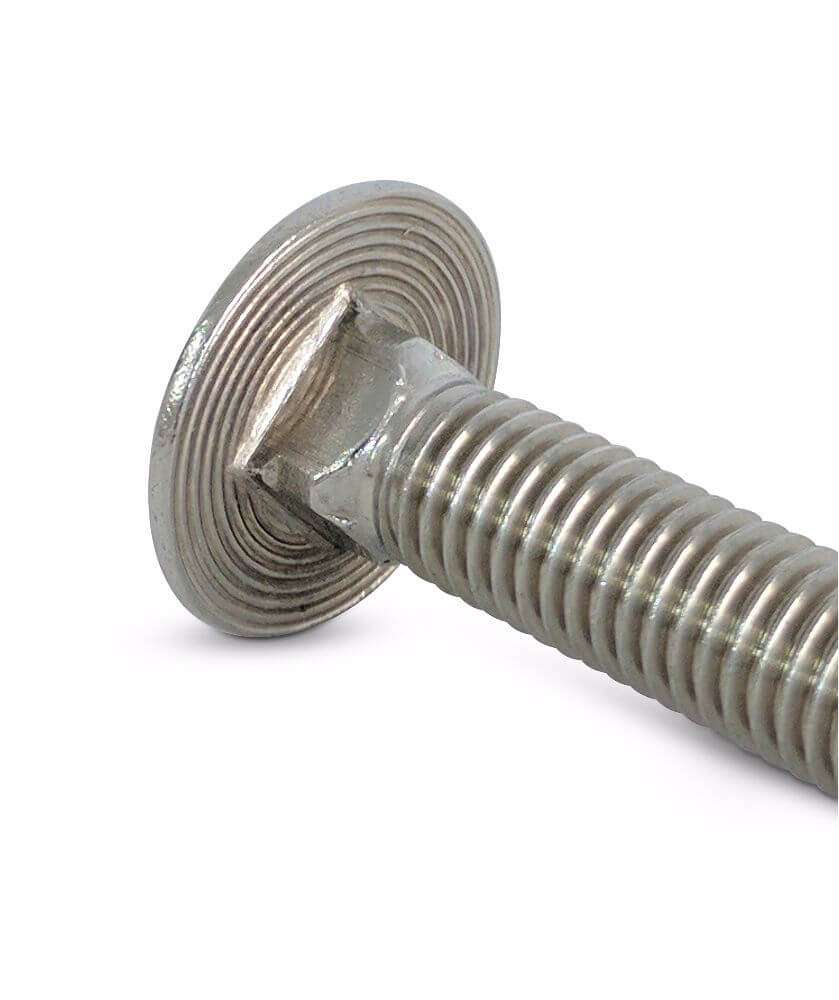

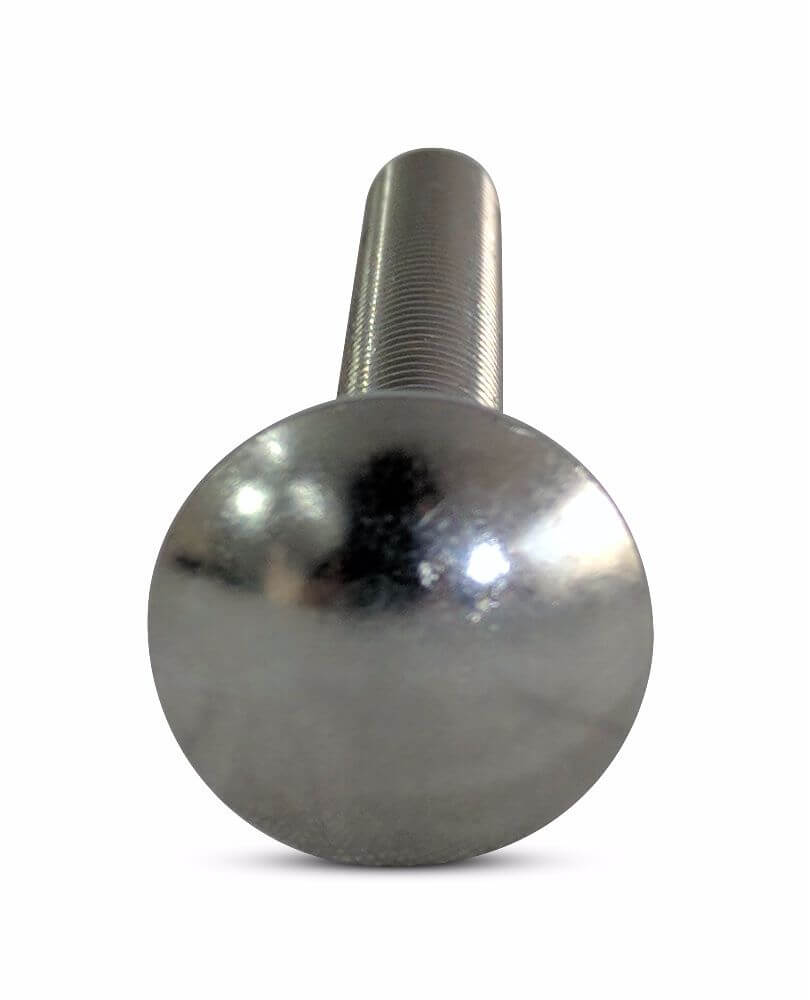

Coach bolts, also commonly known as carriage bolts or cup square hex, are a 'self locking' bolt used for timber to timber construction. The square underneath the head pulls into the timber and means you don't need to hold one side of the bolt with a wrench when tightening. Stainless steel coach bolts are a higher tensile strength than normal mild steel coach bolts, and so are not recommended for use in normal structural timber applications where joint movement needs to be accommodated. Stainless coach bolts and carriage bolts are ideal for exterior applications, or applications where the bolt will be exposed to excess moisture.

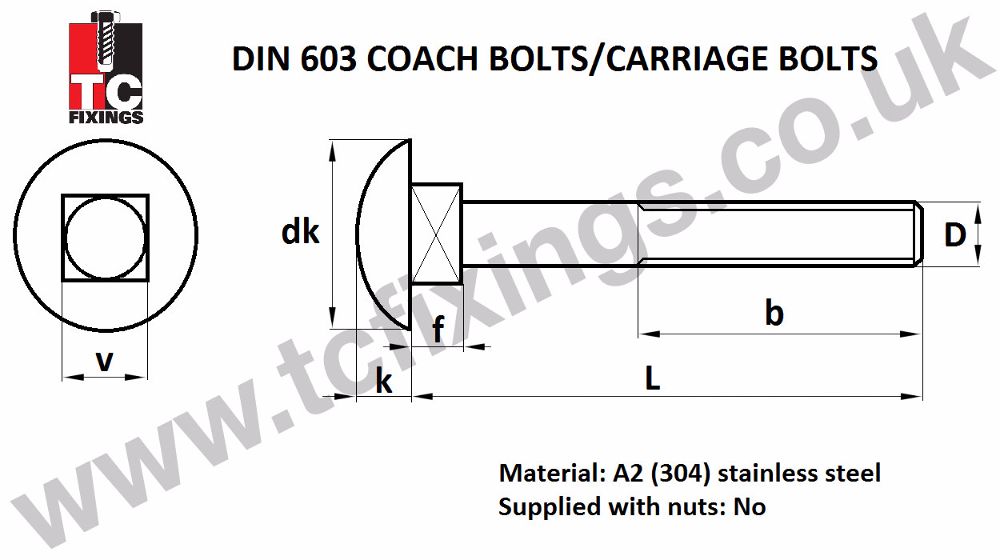

D: M10 x 1.50 pitch
L: 150mm
dk: 24.65mm
k: 5.38mm
v: 10.58mm
f: 6.60mm
b: Full thread
Material: Stainless steel
Grade: A2 (304)
Finish: Self colour
Supplied with nuts: No
DIN standard: DIN 603
Click here to view a full size table
Applications
Timber to timber applications, metal to timber applications, fencing, landscaping, roofing & construction, security.
Orders over £100 will qualify for free 2-3 working day delivery*. Orders under £100 will be subject to a carriage charge - please see below for our delivery options.
We offer a number of different nationwide* services. Please see below for our delivery options.
*Please note that orders to the Isle of Wight, the Isle of Man, the Scottish Isles, the Scottish Highlands, Northern Ireland and the Channel Isles will incur a carriage surcharge.
*Long items greater than or equal to 1.5M in length will be subject to a length surcharge of £12. This surcharge is per shipment, and not per item.
Orders placed before 15:00 with next working day/timed services, Saturday & Royal Mail Special Delivery services will be dispatched the same day (Monday to Friday). Orders placed with any of these services after 15:00 will not be dispatched until the next working day. Orders placed on Saturdays, Sundays or bank holidays will be dispatched on the next working day. Next working day means Monday - Friday, excluding bank holidays. Orders placed with any of the aforementioned services will not be delivered on a Saturday or Sunday. For Saturday deliveries, select 'Saturday Delivery' in the basket.
We aim to despatch all orders with standard services within 2 working days, as long as all of the items are in stock.
We offer the following delivery services:
^Orders placed before 15:00 with next working day/timed services, Saturday & Royal Mail Special Delivery services will be dispatched the same day (Monday to Friday). Orders placed after 15:00 will not be dispatched until the next working day. Orders placed on Saturdays, Sundays or bank holidays will be dispatched on the next working day. Next working day means Monday - Friday, excluding bank holidays. Orders placed with any of the aforementioned services will not be delivered on a Saturday or Sunday. For Saturday deliveries, select 'Saturday Delivery' in the basket.
^^Royal Mail services are only offered to basket weights up to and including 2 kilos only. The 1pm & 9am Special Delivery times are for UK mainland only and will vary for Northern Ireland, Highlands & Islands. Please view the Royal Mail website for full details.
Please note that orders to the Isle of Wight, the Isle of Man, the Scottish Isles, the Scottish Highlands, Northern Ireland and the Channel Isles will incur a carriage surcharge.
Long items greater than or equal to 1.5M in length will be subject to a length surcharge of £12. This surcharge is per shipment, and not per item.
All orders are available for collection from our stores. Collection orders will normally be ready within 2 hours of the order being placed, as long as all items are in stock at the time of order.
TC Fixings offers a free van delivery service to Saffron Walden and the surrounding villages.
|
|
|
|
|
|
|
|
|
|
Quantity WarningPlease be aware that this product only sold in multiples of 0.
Dia: M6
Length: 16mm
SKU: A2CSQ06016
278 In Stock
£0.13
EACH
Dia: M6
Length: 20mm
SKU: A2CSQ06020
109 In Stock
£0.15
EACH
Dia: M6
Length: 25mm
SKU: A2CSQ06025
163 In Stock
£0.15
EACH
Dia: M6
Length: 30mm
SKU: A2CSQ06030
189 In Stock
£0.17
EACH
Dia: M6
Length: 35mm
SKU: A2CSQ06035
101 In Stock
£0.17
EACH
Dia: M6
Length: 40mm
SKU: A2CSQ06040
267 In Stock
£0.17
EACH
Dia: M6
Length: 45mm
SKU: A2CSQ06045
100 In Stock
£0.19
EACH
Dia: M6
Length: 50mm
SKU: A2CSQ06050
157 In Stock
£0.21
EACH
Dia: M6
Length: 55mm
SKU: A2CSQ06055
224 In Stock
£0.24
EACH
Dia: M6
Length: 60mm
SKU: A2CSQ06060
256 In Stock
£0.35
EACH
Dia: M6
Length: 65mm
SKU: A2CSQ06065
48 In Stock
£0.29
EACH
Dia: M6
Length: 70mm
SKU: A2CSQ06070
50 In Stock
£0.29
EACH
Dia: M6
Length: 75mm
SKU: A2CSQ06075
179 In Stock
£0.34
EACH
Dia: M6
Length: 80mm
SKU: A2CSQ06080
116 In Stock
£0.50
EACH
Dia: M6
Length: 90mm
SKU: A2CSQ06090
187 In Stock
£0.32
EACH
Dia: M6
Length: 100mm
SKU: A2CSQ06100
135 In Stock
£0.31
EACH
Dia: M6
Length: 120mm
SKU: A2CSQ06120
69 In Stock
£0.76
EACH
Dia: M6
Length: 150mm
SKU: A2CSQ06150
Out of Stock
£0.85
EACH
Dia: M8
Length: 25mm
SKU: A2CSQ08025
80 In Stock
£0.32
EACH
Dia: M8
Length: 40mm
SKU: A2CSQ08040
179 In Stock
£0.34
EACH
Dia: M8
Length: 50mm
SKU: A2CSQ08050
307 In Stock
£0.32
EACH
Dia: M8
Length: 70mm
SKU: A2CSQ08070
312 In Stock
£0.43
EACH
Dia: M8
Length: 90mm
SKU: A2CSQ08090
261 In Stock
£0.55
EACH
Dia: M8
Length: 100mm
SKU: A2CSQ08100
242 In Stock
£0.96
EACH
Dia: M8
Length: 120mm
SKU: A2CSQ08120
157 In Stock
£0.79
EACH
Dia: M8
Length: 130mm
SKU: A2CSQ08130
226 In Stock
£0.84
EACH
Dia: M8
Length: 150mm
SKU: A2CSQ08150
325 In Stock
£0.91
EACH
Dia: M10
Length: 25mm
SKU: A2CSQ10025
263 In Stock
£0.46
EACH
Dia: M10
Length: 30mm
SKU: A2CSQ10030
60 In Stock
£0.37
EACH
Dia: M10
Length: 40mm
SKU: A2CSQ10040
100 In Stock
£0.42
EACH
Dia: M10
Length: 45mm
SKU: A2CSQ10045
104 In Stock
£0.55
EACH
Dia: M10
Length: 50mm
SKU: A2CSQ10050
171 In Stock
£0.76
EACH
Dia: M10
Length: 70mm
SKU: A2CSQ10070
392 In Stock
£0.81
EACH
Dia: M10
Length: 80mm
SKU: A2CSQ10080
389 In Stock
£0.73
EACH
Dia: M10
Length: 90mm
SKU: A2CSQ10090
194 In Stock
£0.86
EACH
Dia: M10
Length: 100mm
SKU: A2CSQ10100
159 In Stock
£0.93
EACH
Dia: M10
Length: 110mm
SKU: A2CSQ10110
93 In Stock
£1.03
EACH
Dia: M10
Length: 120mm
SKU: A2CSQ10120
207 In Stock
£1.11
EACH
Dia: M10
Length: 130mm
SKU: A2CSQ10130
39 In Stock
£1.13
EACH
Dia: M10
Length: 150mm
SKU: A2CSQ10150
976 In Stock
£1.18
EACH
Dia: M10
Length: 160mm
SKU: A2CSQ10160
170 In Stock
£1.30
EACH
Dia: M10
Length: 180mm
SKU: A2CSQ10180
763 In Stock
£1.85
EACH
M10x180mm
*Part Thread*
SKU: A2CSQ10180/32
15 In Stock
£1.19
EACH
Dia: M10
Length: 200mm
SKU: A2CSQ10200
358 In Stock
£2.04
EACH
Dia: M10
Length: 260mm
SKU: A2CSQ10260
1100 In Stock
£4.11
EACH
Dia: M10
Length: 300mm
SKU: A2CSQ10300
1100 In Stock
£4.70
EACH
Dia: M12
Length: 50mm
SKU: A2CSQ12050
454 In Stock
£1.09
EACH
Dia: M12
Length: 80mm
SKU: A2CSQ12080
108 In Stock
£1.46
EACH
Dia: M12
Length: 90mm
SKU: A2CSQ12090
85 In Stock
£1.70
EACH
Dia: M12
Length: 100mm
SKU: A2CSQ12100
243 In Stock
£1.70
EACH
Dia: M12
Length: 110mm
SKU: A2CSQ12110
120 In Stock
£1.52
EACH
Dia: M12
Length: 120mm
SKU: A2CSQ12120
252 In Stock
£1.52
EACH
Dia: M12
Length: 130mm
SKU: A2CSQ12130
173 In Stock
£1.64
EACH
Dia: M12
Length: 140mm
SKU: A2CSQ12140
14 In Stock
£1.99
EACH
Dia: M12
Length: 150mm
SKU: A2CSQ12150
1017 In Stock
£1.75
EACH
Dia: M12
Length: 160mm
SKU: A2CSQ12160
Out of Stock
£3.14
EACH
Dia: M12
Length: 180mm
SKU: A2CSQ12180
302 In Stock
£2.81
EACH
Dia: M12
Length: 200mm
SKU: A2CSQ12200
522 In Stock
£2.98
EACH
Dia: M12
Length: 220mm
SKU: A2CSQ12220
Out of Stock
£4.12
EACH
Dia: M12
Length: 240mm
SKU: A2CSQ12240
1 In Stock
£5.71
EACH
Dia: M12
Length: 260mm
SKU: A2CSQ12260
958 In Stock
£5.17
EACH
Dia: M12
Length: 300mm
SKU: A2CSQ12300
1000 In Stock
£5.89
EACH
