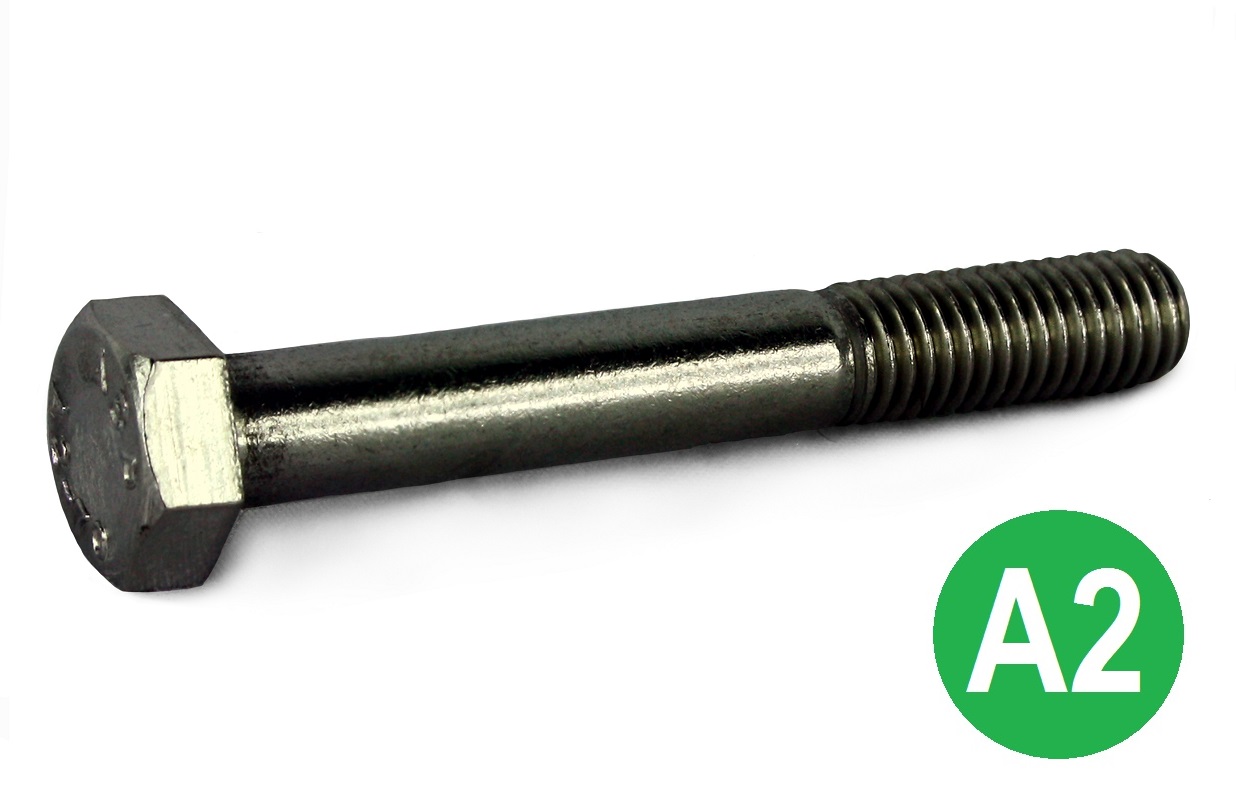

The M12 × 180mm Hexagon Head Bolt A2 (304) Stainless Steel DIN 931 is designed for secure fastening in engineering, fabrication, maintenance and general assembly applications. Manufactured from A2 stainless steel, it offers good corrosion resistance for a wide range of indoor and suitable outdoor environments.
Manufactured to DIN 931, this hexagon head bolt features a partially threaded shank, allowing the unthreaded section to pass through the components being joined. The external hexagonal head can be tightened using a suitable spanner or socket. It is designed for use with a compatible M12 nut or tapped hole where the application and thread engagement are appropriate.
An M12 A2 Stainless Steel Hexagon Head Bolt is a metric fastener designed to secure components together using a compatible nut or threaded hole. Its six-sided head provides a positive external drive for tightening with a spanner or socket.
The bolt is manufactured from A2 (304) stainless steel, offering corrosion resistance for many general-purpose applications. Its DIN 931 specification identifies a partially threaded hexagon head bolt, with an unthreaded shank between the head and the threaded section.
M12 A2 stainless steel hexagon head bolts are suitable for many general fastening applications where a metric bolt and compatible nut or tapped hole are required. Their partially threaded design can be useful where the unthreaded shank passes through the joined components.
Typical applications may include:
Choose the bolt length, thread engagement and mating fastener to suit the joint. Consider the applied load, material compatibility, operating environment and any relevant engineering requirements before installation.
This bolt is specified to DIN 931, covering metric hexagon head bolts with a partially threaded shank. The following dimensions are standard-based nominal values for the M12 × 180mm size.
A2 stainless steel provides corrosion resistance in many general-purpose environments but is not suitable for every chemical, marine or highly corrosive application. Check the manufacturer's documentation where a specific mechanical property, approval or operating condition is required.
What does M12 mean?
M12 identifies a metric thread with a nominal diameter of 12mm. The standard coarse thread pitch for M12 is 1.75mm.
What does DIN 931 mean?
DIN 931 is the dimensional standard for metric hexagon head bolts with a partially threaded shank.
What spanner size is required?
The standard nominal spanner size for an M12 DIN 931 hexagon head bolt is 19mm across flats.
What is the difference between a bolt and a fully threaded set screw?
A DIN 931 bolt has a partially threaded shank, leaving an unthreaded section beneath the head. A fully threaded fastener has threads extending along the full length of its shank.
What are the benefits of A2 stainless steel?
A2 stainless steel, commonly associated with grade 304, offers corrosion resistance for many general-purpose environments. It is not suitable for every highly corrosive environment.
Can this bolt be used outdoors?
It may be suitable for many outdoor applications, depending on exposure and environmental conditions. Consider the risk of corrosion and the compatibility of the other materials in the assembly.
What nut should be used with this bolt?
Use a compatible M12 metric nut with a matching thread and suitable material and strength properties for the application.
How is the bolt length measured?
For a hexagon head bolt, the nominal length is measured from the underside of the head to the end of the bolt, excluding the head height.
Specifics
Nominal diameter: 12mm (M12)
Overall length: 180mm
Thread length: 36mm nominal
Thread type: Metric coarse thread, 1.75mm pitch
Head type: Hexagon head
Head height: 7.5mm nominal
Spanner size: 19mm across flats
Drive recess: External hexagon
Pack size: Each
Material: A2 (304) stainless steel
Surface finish: Stainless steel finish
Standard: DIN 931
SKU: A2HB12180
Installation: Use a suitable 19mm spanner or socket to tighten the bolt. Select a compatible M12 nut or tapped hole and ensure sufficient thread engagement for the joint. Avoid overtightening, which can damage the threads or joined components. Check the suitability of the fastener, mating components and tightening method for the load and operating environment.
