Buy Simpson JHA450/47 Hangers From £1.58 Each | 47mm Long Leg Joist Hanger

Alert

remove

Please enter the new quantity and click submit.

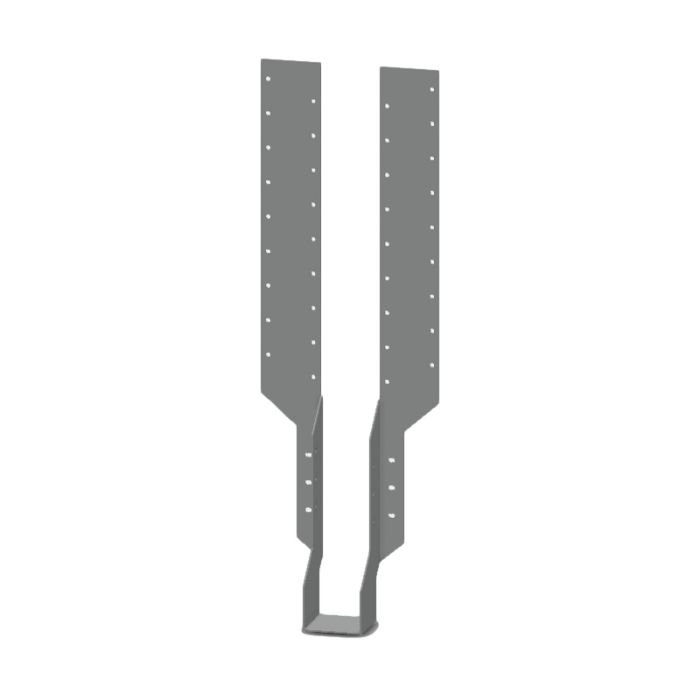

Simpson JHA450/47 Long Leg Joist Hanger 47mm

  • Technical approvals : ETA-06/0270
  • Face fix or wrap over applications
  • Height adjustable strap hanger
SIZE:

£ 2.35 INC VAT (PRICED EACH)

(Include VAT?)

BULK QUANTITY DISCOUNTS:

25+

£2.22

100+

£2.06

QUANTITY:

447 IN STOCK

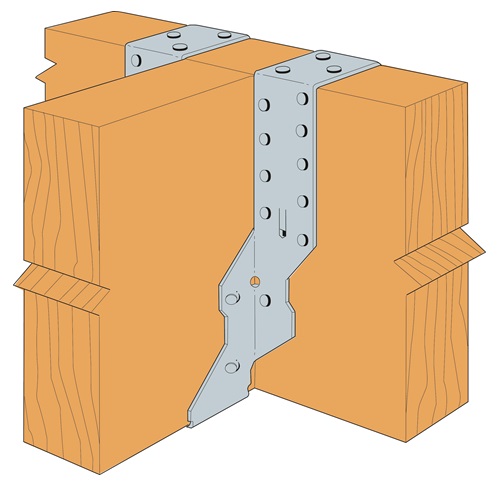

The Simpson JHA450 joist hanger is a height adjustable joist hanger for supporting timber joists from timber members. The Simpson Strong-Tie JHA is made from pre-galvanised mild steel and has European Technical Approval for use in construction. The JHA450 (long leg) version has extra-long legs and is made from thicker gauge steel for heavier duty applications.


Technical Data


Features

  • Galvanised joist hanger that provides ease of installation
  • Published performance values are based on 3.75x30mm twist nails
  • Wider strap for greater surface area & allows increased nail spacing
  • Min. and max. nailing schedules are stamped into the strap
  • The model number & size are stamped into the seat of the hanger
  • Longer, wider legs & thicker gauge than the JHA270

Specifics

Hanger width (A): 47mm (1 x 45mm joist)
Stirrup height (B): 187mm
Depth (C): 50mm
Led width (D): 51.5mm
Height (E): 477mm
Thickness (t): 1.5mm

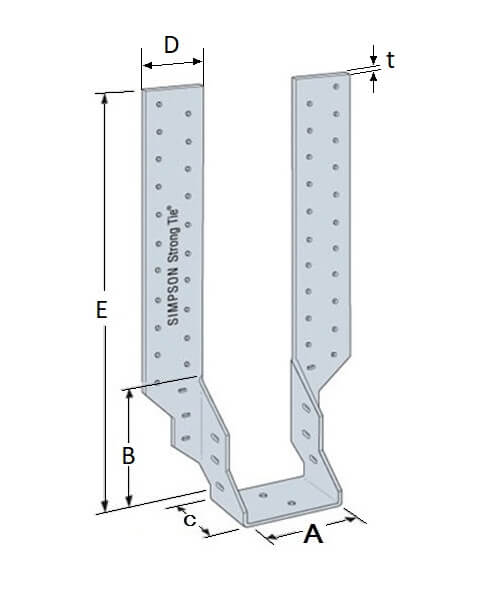

Technical line drawing of Simpson JHA450 joist hanger



JHA Technical Data
JHA Technical Data
Simpson Hangers Declaration Of Performance
Simpson Hangers Declaration Of Performance
Simpson Hangers European Technical Approval
Simpson Hangers European Technical Approval
