Buy Simpson SSH Connector Screws M10 x 80mm| Simpson 75152

Simpson M10 x 80mm SSH TX40 Hex Head Connector Screw

Superior Impreg®+ coating makes the screw suitable for exterior use

Recommended where high load capability is required

Type 17 point to prevent splitting of timber

ORDER BY 3PM FOR NEXT DAY DELIVERY (MON-FRI)*

ORDER BY 3PM FOR NEXT DAY DELIVERY*

FREE STANDARD DELIVERY ON ORDERS OVER £100*

FREE STANDARD DELIVERY OVER £100*

Description
Delivery

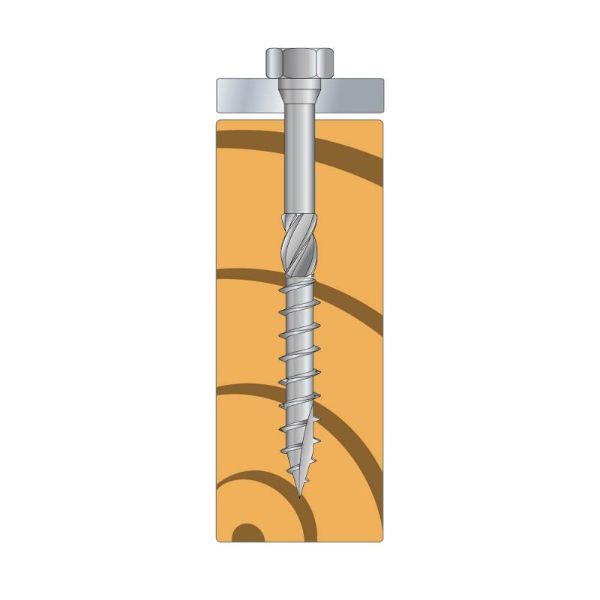

Simpson SSH hexagon head connector screws are recommended for use where high load capacity is required. The SSH connector screw has a both a torx drive and a hexagon head for versatility and features a conical shape underneath the screw head to help the screw fit securely & make a good connection with the connector. They also feature a type 17 slash for fast & easy pick up. The Impreg+ plus coating makes them suitable for both internal & external use.

Technical Data

Declarations of Performance: UK-DoP-h17/0015
Technical data sheet

Features

Type 17 point to prevent splitting of timber
Conical shape under the head for secure fit in connector holes
6 lobe 'Torx' drive
CE marked to EN14592
Milling thread reduces insertion torque (longer sizes only)

Specifics

Diameter (D): 10mm
Length (L): 80mm
Thread length (L_g): 42mm
Head diameter (D_h): 15mm
Head height(H_t): 6mm
Drive recess: TX40 torx drive
Material: Carbon steel
Finish: Impreg®+ coating

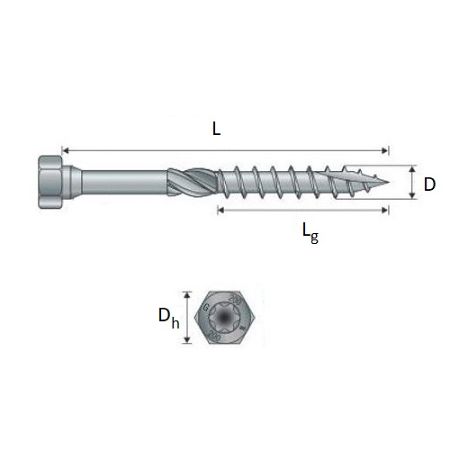

Technical line drawing of Simpson SSH connector screws
