Buy Torx Tek Screws | 4.8x32mm T25 Wing-Tip Countersunk Tek Screws

Description
Delivery

Torx wing-tip self-drilling tek screws are a medium duty timber to metal tek screw, ideal for applications that require high insertion torque due to the torx drive. The wings prevent the threads from being overheated/damaged during installation by drilling a clearance hole through the timber during installation. The wings will then snap off when they meet the metal substrate, allowing the threads to secure into the metal.

Features

Coarse self-tapping thread for extreme grip & excellent pull out
Self-drilling point to drill through metal substrates
Torx drive for high torque and less slip-out
Countersinking ribs under the head
Zinc CR3 plating

Specifics

External thread dia (D): 4.8mm
Internal thread dia (d): 3.58mm
Length (L): 32mm
Drill point dia (dp): 4.0mm
Drill point length (lb): 10mm
Head dia (dk): 9.5mm
Head height (K): 3.15mm
Thread pitch (P): 1.6mm
Drilling capacity: 1.75mm - 4.0mm
Max fixture thickness: 14mm
Drive: TX25
Material: Case hardened steel
Finish: Zinc CR3

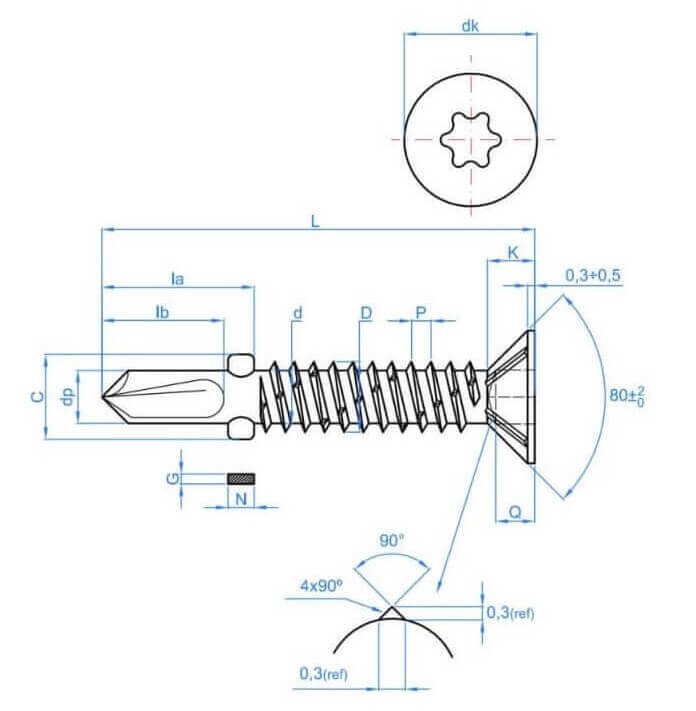

technical line drawing of torx drive torx wing tek screws
