ETA Opt 1 Pan Hd Concrete Screw ATL Ã˜8x80mm INDTHP08080

ETA Option 1 Pan Head Concrete Screw ATLANTIS C3-H Coating 8mm (M10) x 80mm

Pan head with TX45 torx drive

ETA Option 1 approved

8mm drill hole

ORDER BY 3PM FOR NEXT DAY DELIVERY (MON-FRI)*

ORDER BY 3PM FOR NEXT DAY DELIVERY*

FREE STANDARD DELIVERY ON ORDERS OVER £100*

FREE STANDARD DELIVERY OVER £100*

Description
Delivery

Looking to secure your building projects with precision and durability? Look no further than our Index THP pan head concrete screws with ETA approval. Engineered for ultimate performance, these screws are the ideal choice for professionals and DIY enthusiasts alike.

Index THP multi-fix bolts are a non-expansion direct fixing anchor for cracked and non-cracked concrete. With ETA option 1 approval, these fixings can be used for structural applications where the strongest fixings are required. These concrete bolts are reusable and have a pan head with a torx drive. The Atlantis C3-H organic coating gives excellent corrosion resistance in external applications.

Product Strengths & Assessments

Option 1 ETA assessed (Cracked and non-cracked concrete).
Fire Resistance R30-120.
Seismic approval C1 Ø6 - Ø18 & C2 Ø8 - Ø18.
VdS Certificate (sprinkler systems) CEA 4001.
Suitable when reduced edge distances or spacing required.
Superior durability for concrete and masonry applications.
Various size options available to suit your project needs.
Reusable and removable
Atlantis C3-H organic coating.

Technical Data

Specifics

Nominal size: 8x80mm
Drill Ø (d0): Ø8mm
Total length: 80mm
Fixture clearance hole (df): 12mm
Max fixture thickness (tfix): 15mm
Drive recess (Sw): TX45
Minimum drill depth (h1): 75mm
Minimum embedment depth (hnom): 65mm
Base material min thickness (hmin): 100mm
Max rec. load for cracked and uncracked concrete: 857kg
Material: Carbon steel with tempered point
Finish: Atlantis C3-H organic coating

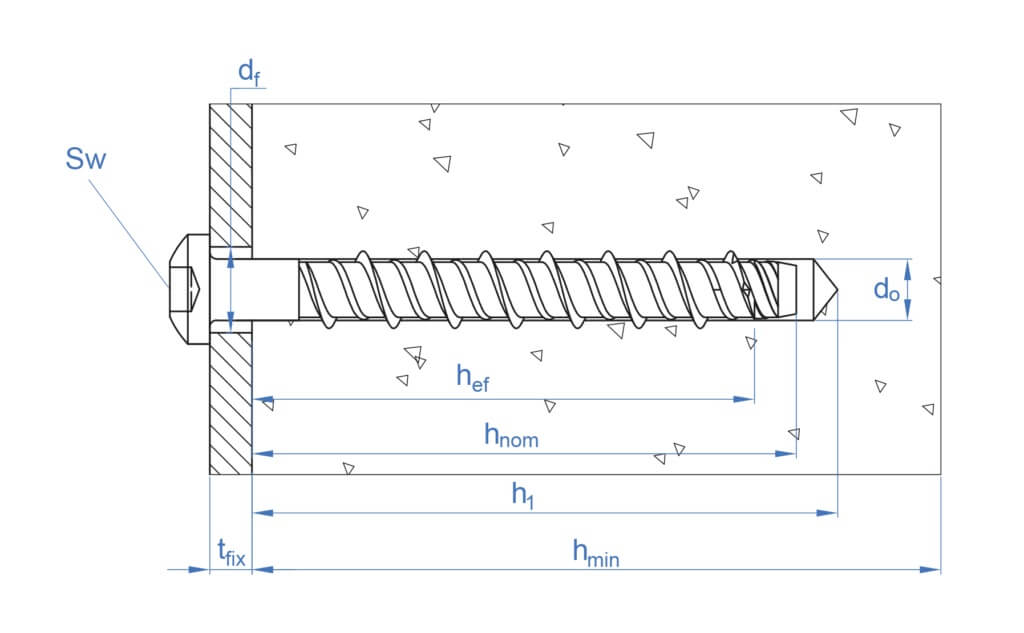

Technical line drawing of Index THP panhead eta approved concrete bolts
